Lotus LED Lamps: 40W / 60W & 100W / 150W
HyLite’s Lotus Lamp provides dedicated LED retrofit solutions for PAR56 and PAR64 fixtures. The 40W/60W model retrofits directly into PAR56 cans, while the 100W/150W model retrofits into PAR64 cans. Both feature selectable wattage and color temperature options, allowing facilities to upgrade existing housings cost-effectively while reducing energy and maintenance demands.
The Lotus Lamp can also be used as a standalone fixture. Review the standalone bracket and mounting options below alongside the current installation instructions.
Choose Your Lotus Lamp: 40W / 60W or 100W / 150W
Start with your existing PAR-can size, then confirm wattage, connection, voltage, beam angle and dimming requirements.
40W / 60W Lotus Lamp
Best starting point for existing PAR56 cans, stages, worship spaces, theaters, auditoriums and medium-to-high-output directional applications.
CCT: 3000K / 4000K / 5000K selectable
CRI: >90 color accuracy
Beam Angles: 15° / 25° / 40° / 120°
Input Voltage: 100–277VAC
Dimming: Triac + 0–10VDC (0-100% smooth)
Connections: EX39 / GX16D / WC2 options
Rating: IP65; enclosed-fixture suitable
100W / 150W Lotus Lamp
Best starting point for high-output PAR64 cans, large stages, auditoriums, performance venues and applications requiring substantially greater light output.
CCT: 3000K / 4000K / 5000K selectable
CRI: >90 color accuracy
Beam Angles: 15° / 25° / 40° / 120°
Input Voltage: 100–277VAC
Dimming: Triac + 0–10VDC (0-100% smooth)
Connections: EX39 / GX16D / WC2 options
Rating: IP65; enclosed-fixture suitable
| Compare Options | PAR56 Lotus Lamp | PAR64 Lotus Lamp |
|---|---|---|
| Selectable Wattage | 40W / 60W | 100W / 150W |
| Maximum Output | 10,195 lm | 24,503 lm |
| Selectable CCT | 3000K / 4000K / 5000K | 3000K / 4000K / 5000K |
| Color Rendering Index (CRI) | >90 | >90 |
| Beam Spread Options | 15° / 25° / 40° / 120° | 15° / 25° / 40° / 120° |
| Input Voltage | 100–277VAC | 100–277VAC |
| Dimming Capability | Triac + 0–10VDC | Triac + 0–10VDC |
| Retrofit Target | PAR56 Can Housing | PAR64 Can Housing |
Lotus Lamp Configuration Options
Review positioning, beam angle and connection options for PAR retrofits or standalone mounting. Confirm the configuration and fixture compatibility using the current product guidelines.
Standalone Fixture Bracket for Mounting
Engineered for maximum performance and durability, the Lotus Lamp’s standalone configuration is ideal for stage lighting, high ceiling lighting & more applications! For standalone installations, the E39 base can be easily unscrewed from the bracket, allowing the lamp to attach directly to a mounting arm.
This adaptable mounting system allows for precision aiming and reduces installation complexity, making the HyLite Lotus Lamp the premier choice for facility managers looking to combine cutting-edge LED technology with simplified, cost-effective mounting options.
- Dual-Function Design: Engineered for maximum versatility, the Lotus Lamp functions seamlessly as both a high-efficiency retrofit and a complete standalone fixture.
- Integrated Bracket (Comes Standard): Each lamp comes standard with a specialized bracket system designed for quick and easy field conversion.
- Simple Conversion: The E39 base easily screws off the bracket, allowing for a direct connection to a mounting arm without the need for additional adapters.
- Sleek, Low-Profile Aesthetic: By utilizing the lamp as a standalone unit, you eliminate the need for bulky traditional housings for a modern, minimalist look.
- Versatile Application Range: This standalone configuration is the ideal solution for multiple applications lighting where space and efficiency are priorities.
Features & Benefits
Light Performance
- Extremely efficient: Up to 166 LPW
- High CRI >90 for color rendering accuracy
- Multiple beam angles: 15°, 25°, 40° & 120°
- Color selectable: 3000K, 4000K & 5000K in 1 lamp
- Up to 90% energy savings over halogen/incandescent
Electrical Flexibility
- Dual wattage models: 40W/60W & 100W/150W
- Triac & 0-10VDC dimmable (0-100% smooth dimming)
- Universal voltage: 100-277VAC for worldwide use
- Flicker-free, pulse-free dimming response
Durability & Installation
- EX39, GX16D & WC2 connection options
- 180° adjustable mounting arm for versatile positioning
- Suitable for fully enclosed fixtures
- IP65 rated against dust and water splashes
- 60,000 hours rated life
- Proprietary design with U.S. Patents: D860,481 S & D860,481 S-1
Installation and Product Construction

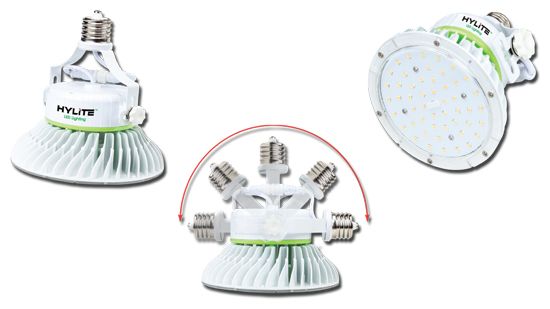

The Lotus Lamps can be used as a standalone fixture or as a direct replacement for HID, PAR halogen, CFL, or incandescent lamps in both new and existing fixtures. They are suitable for fully enclosed fixtures and can be mounted with the base up, down, or sideways, with a 180° adjustable angle for directional lighting.
In addition to its performance, the NexGen Lotus Lamp is built for safety and durability. It is solid state, offering high-shock and high-vibration resistance, and has an IP65 ingress protection rating against dust and water splashes. The NexGen Lotus Lamps are also environmentally friendly, being RoHS compliant and 98% recyclable. A safety cable is included with each Lotus Lamp to ensure secure installation.
Applications
- High Ceilings
- Stage Lighting
- Studio Lighting
- Accent Lighting
- Parking Garage Lights
- Low & High Bay Lights
- Barn Lighting
- Pendant Lights
- Flood Lighting
- Site Lighting
- Explosion-Proof Fixtures
- Decorative Lighting
- Track Lighting
- Down Lights
- Canopy Lights
- Spot Lighting
- Freezer & Cold Storage
- Driveway & Walkways
Unrivaled Color Accuracy: Vivid Colors with CRI >90
The Lotus Lamp boasts an exceptional Color Rendering Index (CRI) of over 90. This high rating reproduces vibrant colors with remarkable accuracy, virtually identical to natural daylight—essential for stage lighting, sanctuaries, auditoriums and broadcast studios.
Standard PAR Lamp CRI: 80
NexGen Lotus Lamp CRI: >90
How the Lotus Lamp Fits Existing PAR Cans
When mounting the Lotus Lamp into a PAR can, the most common installation method is from the rear side. After opening the rear door access of the PAR can, the Lotus LED Lamp slides into place and secures onto the internal retention clips provided by the fixture.
Some PAR cans also feature screw-mount hardware to lock the lamp securely in place. Existing PAR cans may vary in dimensions and retention mechanisms, so confirm fixture measurements, socket connection type and installation instructions before ordering.
Real-Life Applications & Case Studies
See how HyLite Lotus Lamps are transforming sanctuaries, historic venues, and broadcast spaces across the country.
Ronald Reagan Presidential Library
See how 97 HyLite LED Lotus Lamps helped modernize the lighting inside the Ronald Reagan Presidential Library’s Air Force One Pavilion while preserving existing infrastructure and reducing long-term maintenance demands. Showcasing a historical artifact like Air Force One requires exactly the right visual tone.
St. Bernard Catholic Church
This Church is shining brighter than ever following the successful installation of a state-of-the-art LED lighting system. By upgrading to the Lotus Lamp, the church has embraced modern energy efficiency while dramatically enhancing the beauty and functionality of its sacred space.
First Presbyterian Church – St. Petersburg
The impact of the HyLite LED Lotus Lamps was immediate and profound, far exceeding expectations. The new lighting transformed the space, providing high-quality, reliable illumination without the high cost and disruption of a full system replacement.
Church Production Magazine Article
“Retro-fitting a HyLite Lotus Lamp requires zero expertise. They come ready with a GX16D adapter, so you just swap out the LED bulb with the old bulb, hook up the adapter, close up the unit, and plug it in. Presto, you have light. Piece of cake.”
Technologies for Worship Review
HyLite LED Lighting has delivered a compelling option with its Lotus Lamp lineup. For churches and other facilities that have relied on these ubiquitous fixtures for decades, replacing them entirely with new LED PAR cans or alternative luminaires has often proven costly or disruptive.
Lotus Lamp Features at a Glance
Lotus PAR56 / PAR64 Product FAQs
What is the difference between PAR56 and PAR64 Lotus Lamps?
The 40W/60W Lotus Lamp retrofits PAR56 cans (delivering up to 10,195 lumens), while the 100W/150W Lotus Lamp retrofits PAR64 cans (delivering up to 24,503 lumens).
How do color temperatures work on the Lotus Lamp?
Both PAR56 and PAR64 Lotus Lamp models feature an onboard CCT selection switch, allowing installers to choose between 3000K, 4000K, or 5000K color temperatures on site.
Are Lotus Lamps dimmable with existing theatrical or venue dimmers?
Yes. Lotus Lamps feature universal dimming drivers compatible with both Triac and 0-10VDC commercial dimming systems, offering smooth 0–100% dimming with no flicker or stepping.
How high is the Color Rendering Index (CRI) on these lamps?
The Lotus Lamp features an exceptional CRI >90 rating, ensuring brilliant, true-to-life color reproduction that is essential for stage productions, sanctuaries, and broadcast studios.
What socket connection options are available?
Lotus Lamps offer flexible connection options including GX16D mogul prong adapters, EX39 mogul screw bases, and WC2 options to match your existing fixture wiring.
Need Help Matching a Lotus Lamp to Your PAR Can?
Send HyLite your existing lamp model, PAR-can dimensions, supply voltage, connection type, mounting height and project quantity. Our lighting team will recommend the ideal Lotus Lamp configuration for your facility.
