PAR56, and PAR64 Retrofit Solutions

PAR56 & PAR64 Commercial LED Retrofit Solutions

PAR56 & PAR64 LED Retrofit Lamps for Churches, Theaters & Large Venues

Upgrade existing PAR56 and PAR64 can lights without automatically replacing the entire fixture. HyLite Lotus Lamps provide high-output, selectable LED retrofit options for stages, houses of worship, theaters, auditoriums, convention centers, museums and other commercial applications.

Compare PAR56 & PAR64 Models Request Retrofit Recommendation
Keep Existing PAR Cans Upgrade to LED without replacing complete fixture housings.
Dual-Wattage Models 40W/60W PAR56 and 100W/150W PAR64 product options.
CRI >90 Accuracy True-to-life color rendering for stage, sanctuary and artwork.
Multiple Beam Angles Choose 15°, 25°, 40°, or 120° beam distribution options.

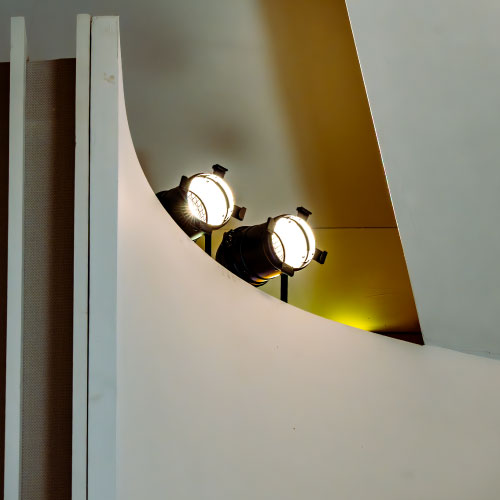

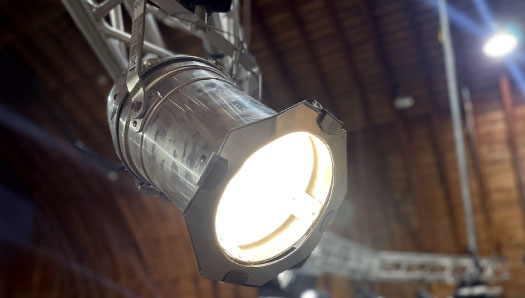

Lotus Lamp retrofit application in a large venue
Lotus Lamp retrofit application for large-venue PAR-can lighting.

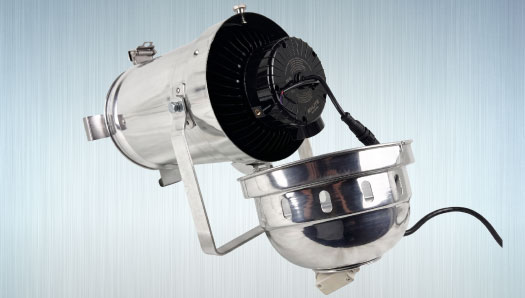

HyLite Lotus LED Lamp used for PAR retrofit lighting
HyLite Lotus Lamp for PAR56 and PAR64 retrofit applications.

PAR56 & PAR64 LED Retrofit Overview

For almost the past 75 years, PAR lamps have provided durable, controllable directional lighting for stages, churches, auditoriums, convention centers, studios, and large venues. The parabolic aluminized reflector (PAR can) remains a staple fixture in these spaces. LED technology now provides an ideal modernization path without requiring full fixture replacement.

HyLite’s Lotus Lamp provides dedicated LED retrofit solutions for PAR56 and PAR64 fixtures. The 40W/60W model retrofits directly into PAR56 cans, while the 100W/150W model retrofits into PAR64 cans. Both feature selectable wattage and color temperature options, allowing facilities to upgrade existing housings cost-effectively while reducing energy and maintenance demands.

Choose the Right Lotus Lamp for Your PAR Can

Start with your existing PAR-can size, then confirm wattage, connection, voltage, beam angle and dimming requirements.

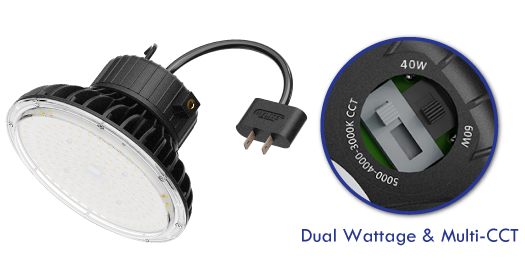

PAR56 Retrofit

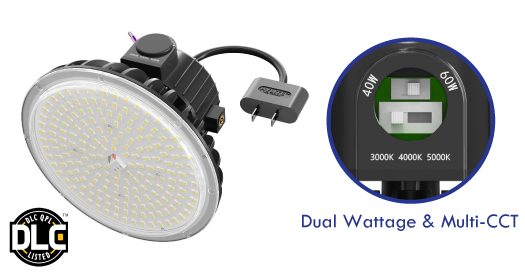

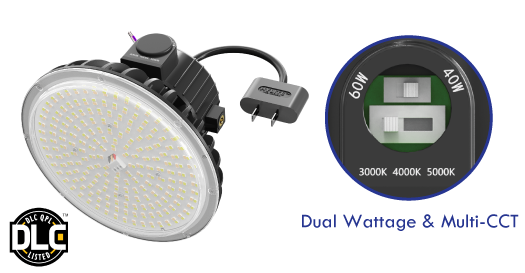

40W / 60W Lotus Lamp

Up to 10,195 Lumens
HyLite 40W and 60W Lotus PAR56 retrofit lamp 40W and 60W Lotus Lamp replacement equivalency graphic

Best starting point for existing PAR56 cans, stages, worship spaces, theaters, auditoriums and medium-to-high-output directional applications.

Wattage: 40W / 60W selectable
CCT: 3000K / 4000K / 5000K selectable
CRI: >90 color accuracy
Beam Angles: 15° / 25° / 40° / 120°
Input Voltage: 100–277VAC
Dimming: Triac + 0–10VDC (0-100% smooth)
Connections: EX39 / GX16D / WC2 options
Rating: IP65; enclosed-fixture suitable
Download 40W / 60W Spec Sheet

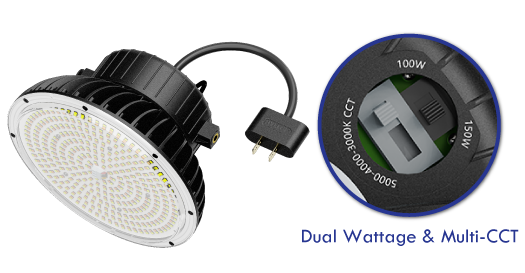

PAR64 Retrofit

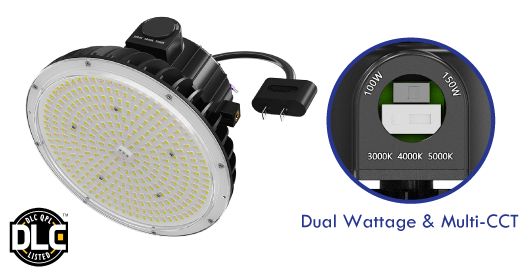

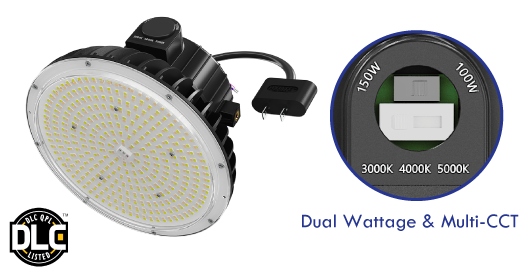

100W / 150W Lotus Lamp

Up to 24,503 Lumens
HyLite 100W and 150W Lotus PAR64 retrofit lamp 100W and 150W Lotus Lamp replacement equivalency graphic

Best starting point for high-output PAR64 cans, large stages, auditoriums, performance venues and applications requiring substantially greater light output.

Wattage: 100W / 150W selectable
CCT: 3000K / 4000K / 5000K selectable
CRI: >90 color accuracy
Beam Angles: 15° / 25° / 40° / 120°
Input Voltage: 100–277VAC
Dimming: Triac + 0–10VDC (0-100% smooth)
Connections: EX39 / GX16D / WC2 options
Rating: IP65; enclosed-fixture suitable
Download 100W / 150W Spec Sheet
Compare Options PAR56 Lotus Lamp PAR64 Lotus Lamp
Selectable Wattage 40W / 60W 100W / 150W
Maximum Output 10,195 lm 24,503 lm
Selectable CCT 3000K / 4000K / 5000K 3000K / 4000K / 5000K
Color Rendering Index (CRI) >90 >90
Beam Spread Options 15° / 25° / 40° / 120° 15° / 25° / 40° / 120°
Input Voltage 100–277VAC 100–277VAC
Dimming Capability Triac + 0–10VDC Triac + 0–10VDC
Retrofit Target PAR56 Can Housing PAR64 Can Housing

Unrivaled Color Accuracy: Vivid Colors with CRI >90

The Lotus Lamp boasts an exceptional Color Rendering Index (CRI) of over 90. This high rating reproduces vibrant colors with remarkable accuracy, virtually identical to natural daylight—essential for stage lighting, sanctuaries, auditoriums and broadcast studios.

Standard PAR Lamp CRI: 80

Standard PAR Lamp CRI 80 comparison

NexGen Lotus Lamp CRI: >90

NexGen Lotus Lamp CRI >90 comparison

How the Lotus Lamp Fits Existing PAR Cans

When mounting the Lotus Lamp into a PAR can, the most common installation method is from the rear side. After opening the rear door access of the PAR can, the Lotus LED Lamp slides into place and secures onto the internal retention clips provided by the fixture.

Some PAR cans also feature screw-mount hardware to lock the lamp securely in place. Existing PAR cans may vary in dimensions and retention mechanisms, so confirm fixture measurements, socket connection type and installation instructions before ordering.

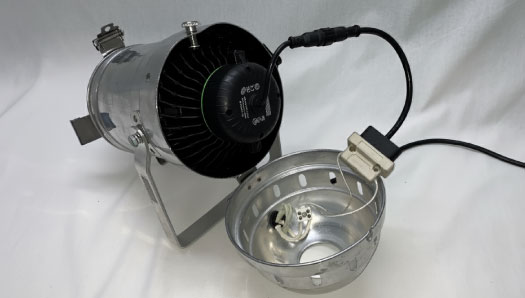

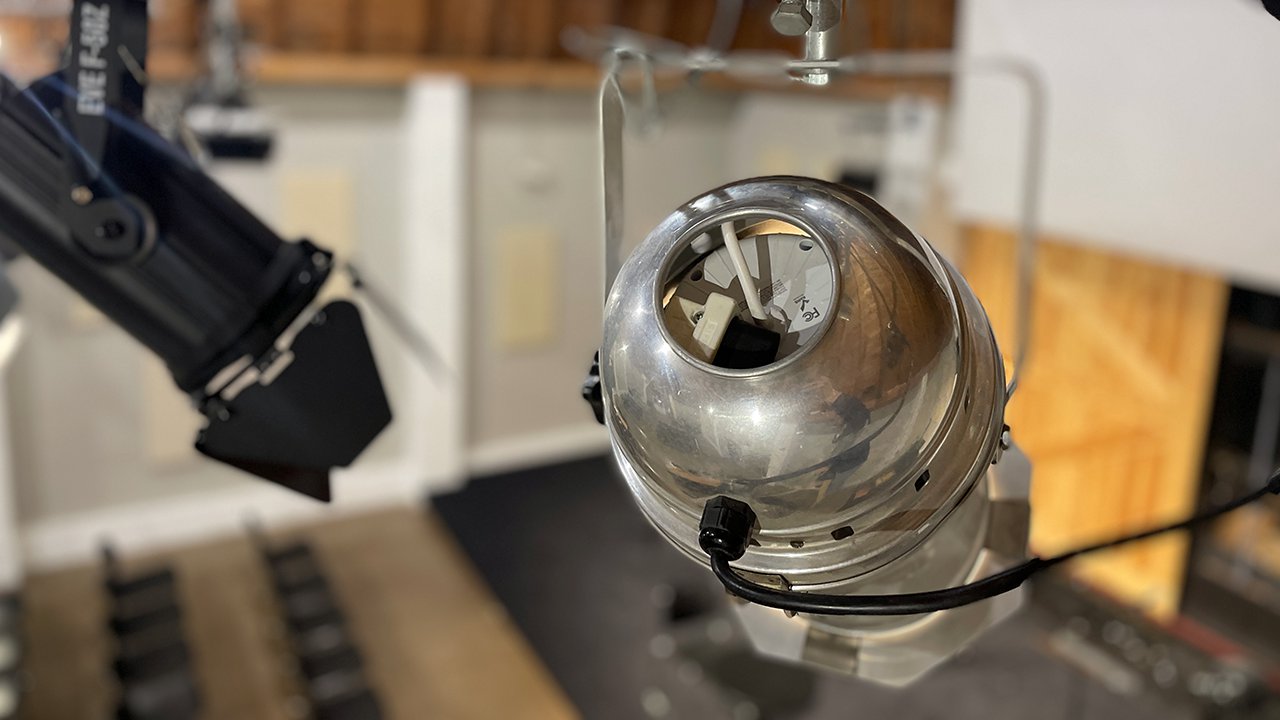

Lotus Lamp installed in existing PAR can fixture

Configure the Retrofit for Your Existing Installation

Confirm positioning, beam angle selection, connection configuration and fixture compatibility using official product guidelines.

Lotus Lamp 180 degree adjustable positioning arm
Adjustable Positioning 180° adjustable mounting arm to orient the lamp appropriately within the housing.

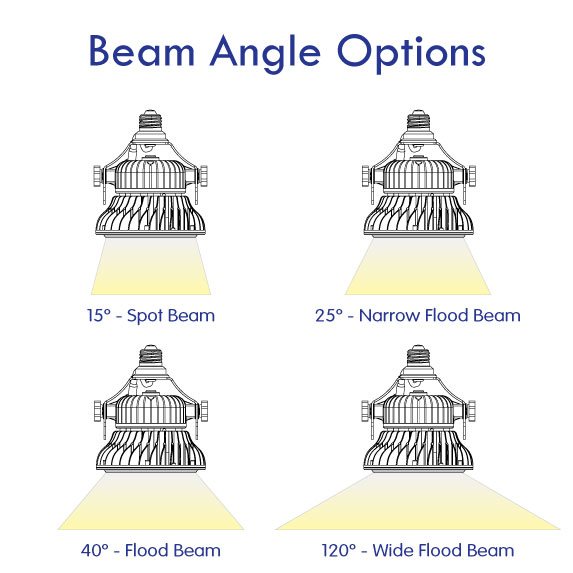

Lotus Lamp multiple beam angle options
Multiple Beam Options Available in 15°, 25°, 40°, and 120° beam distribution choices.

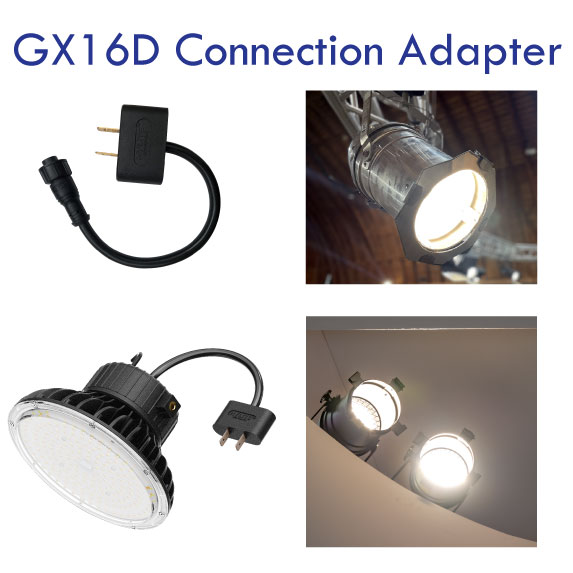

Lotus Lamp GX16D power connection
GX16D Connection Direct plug-and-play adapter for standard GX16D mogul prong sockets.

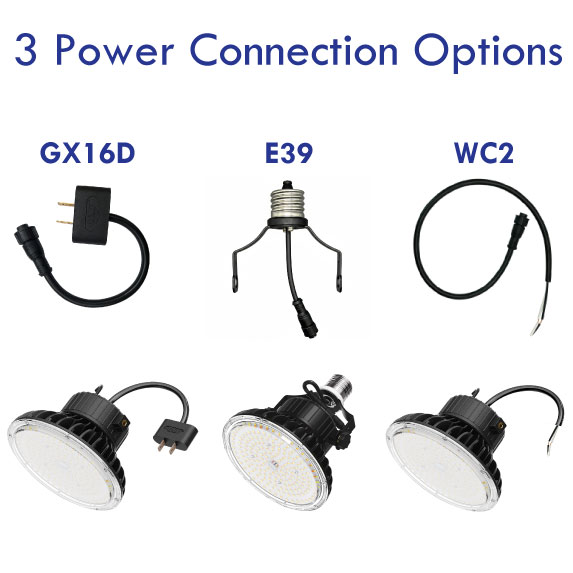

Lotus Lamp multiple power connection options
Power Connection Options Flexible power adapters available to match existing venue wiring.

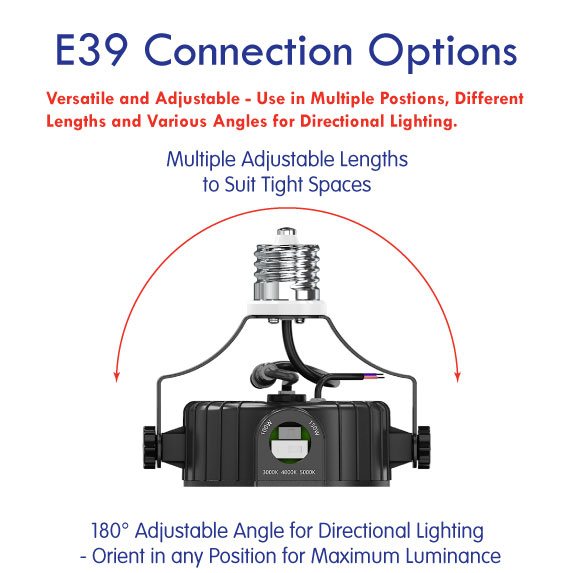

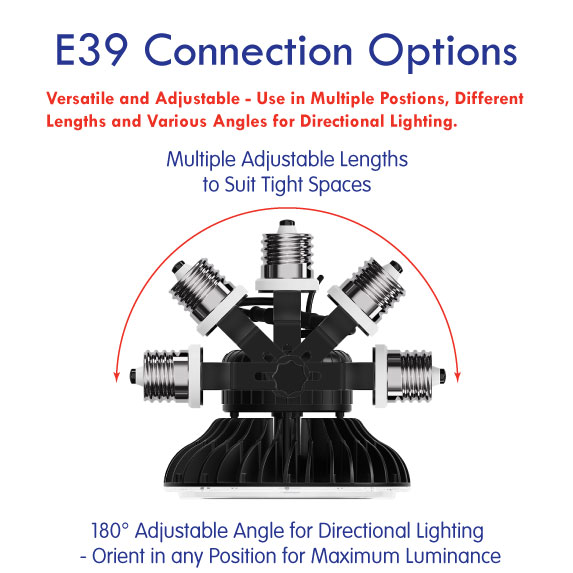

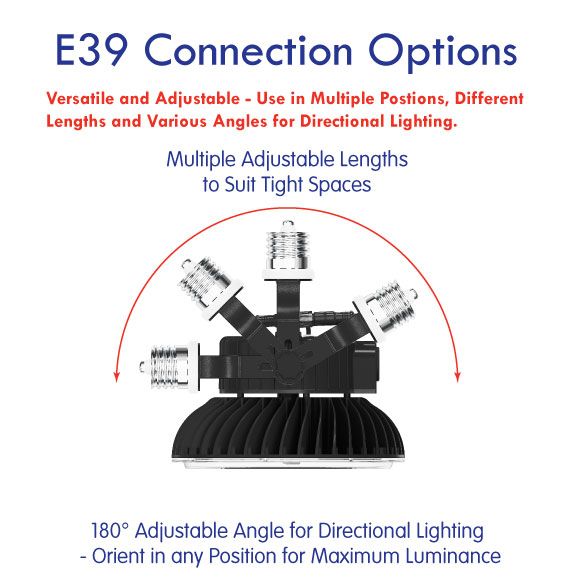

Lotus Lamp EX39 mogul screw base options
EX39 Mogul Options EX39 screw base options for architectural and commercial socket configurations.

Features & Benefits

Light Performance

  • Extremely efficient: Up to 166 LPW
  • High CRI >90 for color rendering accuracy
  • Multiple beam angles: 15°, 25°, 40° & 120°
  • Color selectable: 3000K, 4000K & 5000K in 1 lamp
  • Up to 90% energy savings over halogen/incandescent

Electrical Flexibility

  • Dual wattage models: 40W/60W & 100W/150W
  • Triac & 0-10VDC dimmable (0-100% smooth dimming)
  • Universal voltage: 100-277VAC for worldwide use
  • Flicker-free, pulse-free dimming response

Durability & Installation

  • EX39, GX16D & WC2 connection options
  • 180° adjustable mounting arm for versatile positioning
  • Suitable for fully enclosed fixtures
  • IP65 rated against dust and water splashes
  • 60,000 hours rated life
  • Proprietary design with U.S. Patents: D860,481 S & D860,481 S-1

Real-Life Applications & Case Studies

See how HyLite Lotus Lamps are transforming sanctuaries, historic venues, and broadcast spaces across the country.

Featured Case Study

Ronald Reagan Presidential Library

See how 97 HyLite LED Lotus Lamps helped modernize the lighting inside the Ronald Reagan Presidential Library’s Air Force One Pavilion while preserving existing infrastructure and reducing long-term maintenance demands. Showcasing a historical artifact like Air Force One requires exactly the right visual tone.

Read About the Project
St. Bernard Catholic Church Lotus Lamp project

St. Bernard Catholic Church

This Church is shining brighter than ever following the successful installation of a state-of-the-art LED lighting system. By upgrading to the Lotus Lamp, the church has embraced modern energy efficiency while dramatically enhancing the beauty and functionality of its sacred space.

Read About the Project
First Presbyterian Church St Petersburg Lotus Lamp project

First Presbyterian Church – St. Petersburg

The impact of the HyLite LED Lotus Lamps was immediate and profound, far exceeding expectations. The new lighting transformed the space, providing high-quality, reliable illumination without the high cost and disruption of a full system replacement.

Read About the Project
Church Production Magazine Lotus Lamp article

Church Production Magazine Article

“Retro-fitting a HyLite Lotus Lamp requires zero expertise. They come ready with a GX16D adapter, so you just swap out the LED bulb with the old bulb, hook up the adapter, close up the unit, and plug it in. Presto, you have light. Piece of cake.”
— Joseph Cottle, LifeMission Church
Read the Article
Technologies for Worship Magazine Lotus Lamp review

Technologies for Worship Review

HyLite LED Lighting has delivered a compelling option with its Lotus Lamp lineup. For churches and other facilities that have relied on these ubiquitous fixtures for decades, replacing them entirely with new LED PAR cans or alternative luminaires has often proven costly or disruptive.

Read the Article

Lotus Lamp Features at a Glance

Multiple beam options feature symbol Enclosed luminaires feature symbol Up to 60000 hours feature symbol Energy reduction feature symbol Vibration and shock resistant symbol Zero interference feature symbol Radiation free feature symbol Lumens per watt feature symbol Tested feature symbol Safe and reliable feature symbol

What to Know When Retrofitting PAR Lamps

1

Proprietary Patented Design

The HyLite Lotus Lamp features proprietary, patented thermal management and optics built specifically for high-output PAR retrofits.

2

Direct Can Housing Retrofit

Designed specifically to fit existing PAR can housings to directly replace legacy halogen or incandescent PAR56 and PAR64 lamps.

3

Industry-Leading Technology

As LED technology evolves, HyLite leads the industry with high-CRI, multi-CCT selectable, and smooth dimming compatibility.

PAR56 & PAR64 Retrofit FAQ

What is the difference between PAR56 and PAR64 Lotus Lamps?

The 40W/60W Lotus Lamp retrofits PAR56 cans (delivering up to 10,195 lumens), while the 100W/150W Lotus Lamp retrofits PAR64 cans (delivering up to 24,503 lumens).

How do color temperatures work on the Lotus Lamp?

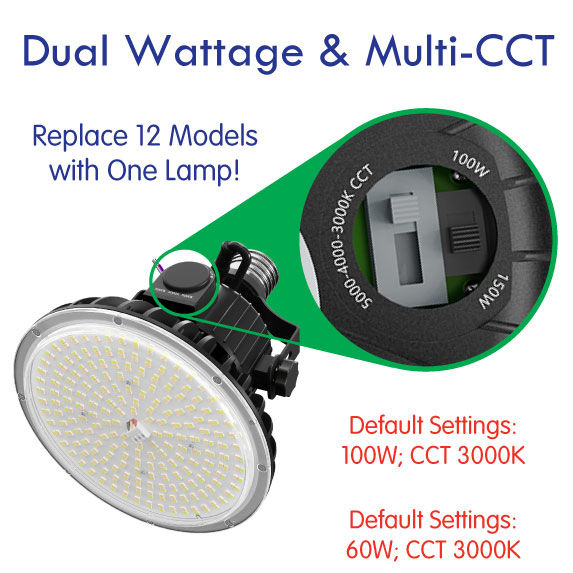

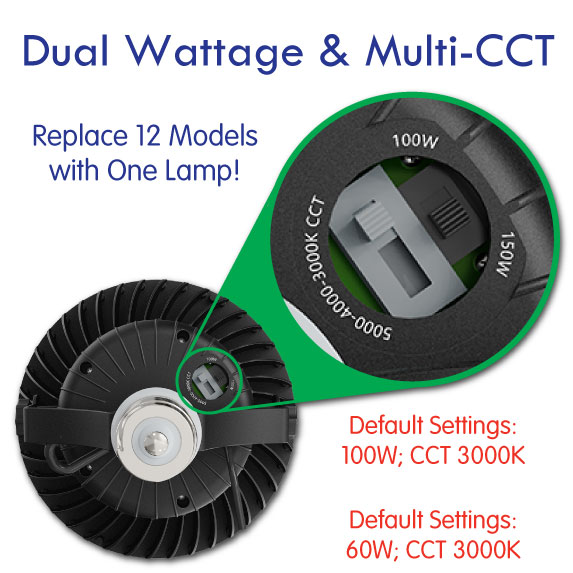

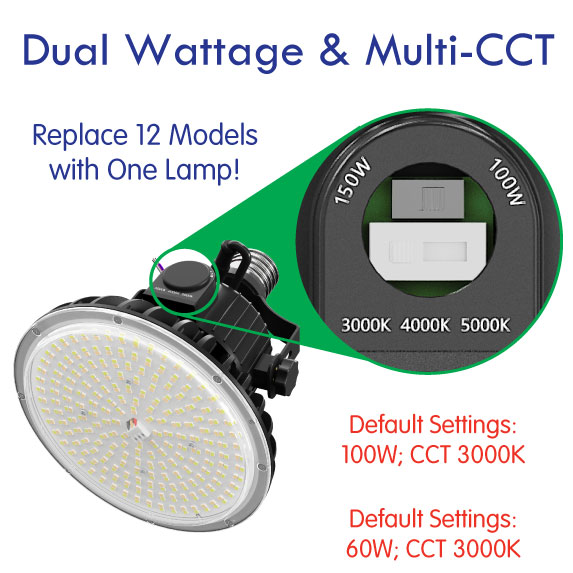

Both PAR56 and PAR64 Lotus Lamp models feature an onboard CCT selection switch, allowing installers to choose between 3000K, 4000K, or 5000K color temperatures on site.

Are Lotus Lamps dimmable with existing theatrical or venue dimmers?

Yes. Lotus Lamps feature universal dimming drivers compatible with both Triac and 0-10VDC commercial dimming systems, offering smooth 0–100% dimming with no flicker or stepping.

How high is the Color Rendering Index (CRI) on these lamps?

The Lotus Lamp features an exceptional CRI >90 rating, ensuring brilliant, true-to-life color reproduction that is essential for stage productions, sanctuaries, and broadcast studios.

What socket connection options are available?

Lotus Lamps offer flexible connection options including GX16D mogul prong adapters, EX39 mogul screw bases, and WC2 options to match your existing fixture wiring.

Need Help Matching a Lotus Lamp to Your PAR Can?

Send HyLite your existing lamp model, PAR-can dimensions, supply voltage, connection type, mounting height and project quantity. Our lighting team will recommend the ideal Lotus Lamp configuration for your facility.

Request Retrofit Recommendation View All Spec Sheets
