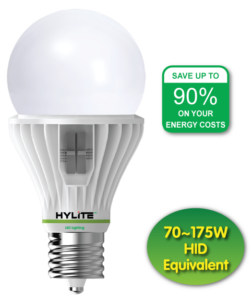

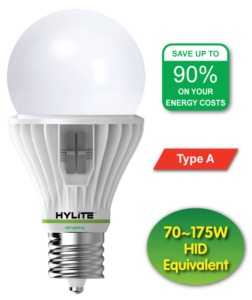

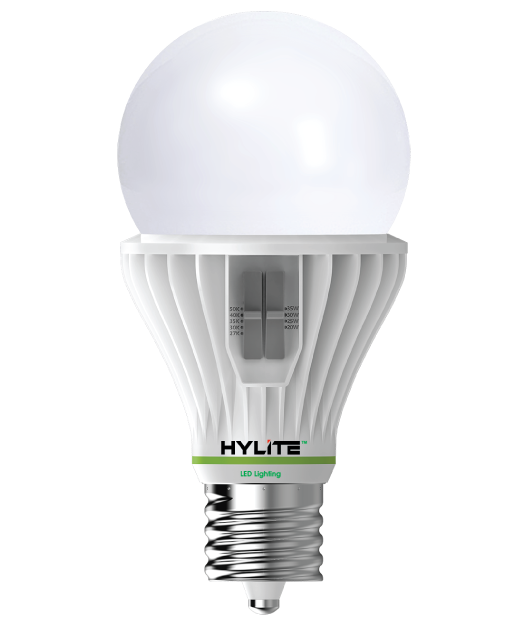

Intigo Omni-Directional LED HID Replacement Lamp
The HyLite Intigo IOD-2035 is a compact, high-efficiency LED retrofit lamp designed for compatible HID, HPS, metal halide, mercury-vapor and CFL fixtures. One EX39 mogul-base lamp provides 20W / 25W / 30W / 35W selectable wattage and 2700K / 3000K / 3500K / 4000K / 5000K selectable CCT—giving contractors and facility teams 20 wattage/CCT configurations from a single SKU.
One Intigo Lamp, 20 Field-Selectable Configurations
Four wattage settings and five color-temperature settings allow one Intigo lamp to cover multiple retrofit conditions. Select the appropriate output and CCT before installation based on the existing fixture, mounting height, required light level and desired appearance.
| Selected Wattage | Delivered Maximum Lumens | Approx. Efficacy |
|---|---|---|
| 20W | 3,300 lm | 165 LPW |
| 25W | 4,125 lm | 165 LPW |
| 30W | 4,950 lm | 165 LPW |
| 35W | 5,775 lm | 165 LPW |
HID-equivalent range: 70W–175W HID
Recommended maximum installation height: Under 20 ft. (6 m)
Base: EX39 mogul
Input: 100–277VAC, 50/60 Hz
Five Selectable Color Temperatures
Intigo provides 2700K, 3000K, 3500K, 4000K and 5000K from the same lamp. This gives contractors and facility managers the flexibility to match warmer decorative areas, neutral commercial spaces and brighter daylight-style applications without stocking five separate CCT products.
Intigo HID Retrofit Installation & Compatibility
Intigo is a ballast-bypass LED retrofit lamp. The existing ballast, if equipped, must be bypassed or removed, and the lamp operates directly from approved 100–277VAC line voltage. Installation should be completed in accordance with applicable electrical codes and installation instructions.
Ballast Bypass Required
If the existing fixture has a ballast, it must be bypassed or removed before the Intigo lamp is installed.
100–277VAC Line Voltage
Universal 100–277VAC input with a safe, isolated internal circuit design.
Horizontal or Vertical Mount
Intigo lamps are approved for universal burning positions—base up, base down, or sideways.
Fully Enclosed Fixtures
Suitable for fully enclosed fixtures when sufficient space and airflow are provided for heat dissipation.
Minimum Enclosed Compartment
Requires a minimum enclosed-fixture lamp compartment of 8" × 8" × 11".
Not for Dimmers
Intigo is non-dimmable. Control illumination using standard wall switches or electronic photosensors as specified.
Intigo Features & Benefits
- 4 selectable wattages: 20W, 25W, 30W and 35W
- 5 selectable CCTs: 2700K, 3000K, 3500K, 4000K and 5000K
- 20 wattage/CCT combinations from one lamp
- Up to 5,775 delivered lumens
- Up to 165 LPW efficacy
- CRI >80
- 360° omni-directional illumination
- EX39 mogul base
- IP65 ingress protection
- Instant start and restart without HID-style warm-up
- 4kV surge protection
- Power factor >0.9 and THD <20%
- Rated life of approximately 50,000–60,000 hours depending on installation conditions
- Shatter-resistant, high-shock and high-vibration-resistant construction
- RoHS compliant; no lead or mercury
- 98% recyclable
- 5-year warranty

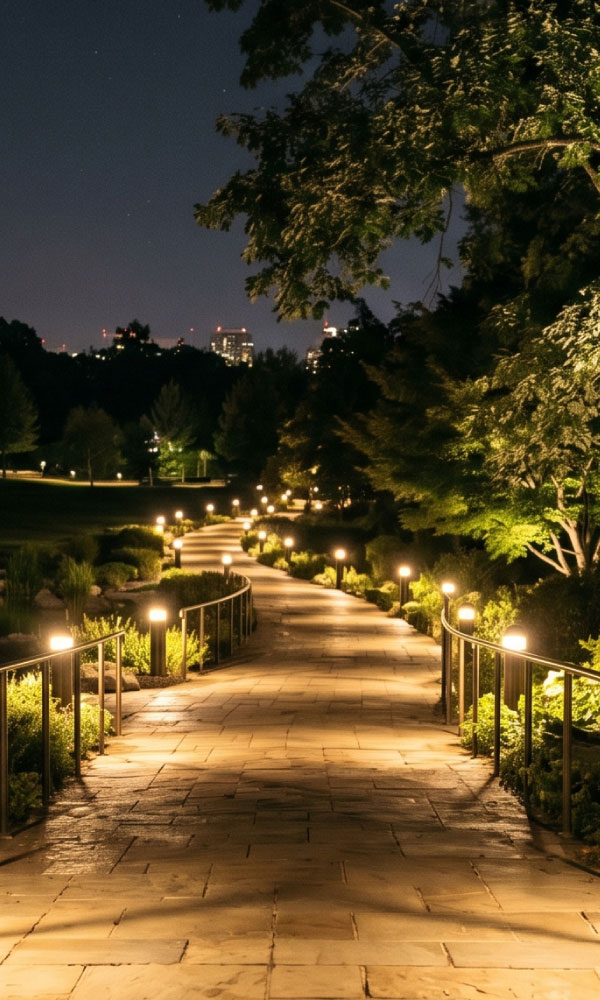

Common Intigo Applications
- Bollards and walkways
- Offices
- Schools
- Hotels
- Restaurants
- Shopping malls and retail stores
- Hospitals and healthcare facilities
- Decorative fixtures
- Driveways
- Stairwells
Intigo vs. Omni-Cob: Which HID Retrofit Family Fits?
Both product families are designed for HID retrofit applications, but they cover different output ranges. Use the fixture and application requirements—not just the old lamp wattage—to select the ideal replacement.
| Product | Wattage Range | CCT Options | Maximum Output | Best Starting Point |
|---|---|---|---|---|
| Intigo IOD-2035 | 20 / 25 / 30 / 35W | 2700K / 3000K / 3500K / 4000K / 5000K | 5,775 lm | EX39 fixtures needing moderate output and 5-CCT flexibility |
| Omni-Cob family | Multiple families from 9W to 100W | 3000K / 4000K / 5000K | Up to 16,500 lm | Projects needing a broader lumen/wattage range or medium-base choices |
Intigo Product Features
What to Check Before Ordering Intigo
Send this information to HyLite before starting a retrofit so the team can confirm product and installation compatibility.
Intigo Retrofit Applications
Intigo LED HID Retrofit FAQ
What is the HyLite Intigo IOD-2035 designed to replace?
HyLite Intigo lamps are direct retrofits for compatible CFL, mercury-vapor, HID and HPS lamps in the 70W–175W HID equivalent range. Final selection depends on fixture dimensions, voltage, socket type, mounting height, and required light output.
How many settings does Intigo provide?
Intigo combines four wattage settings (20W, 25W, 30W, 35W) with five CCT settings (2700K, 3000K, 3500K, 4000K, 5000K) for 20 field-selectable combinations.
How many lumens does the Intigo lamp produce?
Delivers 3,300 lumens at 20W, 4,125 lumens at 25W, 4,950 lumens at 30W, and 5,775 lumens at 35W.
Does Intigo work with the existing HID ballast?
No. The existing ballast must be bypassed or removed prior to Intigo installation.
Can the Intigo lamp be installed horizontally?
Yes. Intigo features universal burning positions, allowing base-up, base-down, and horizontal orientations.
Can Intigo be installed in a fully enclosed fixture?
Yes, provided the fixture meets the minimum compartment requirements of 8 inches by 8 inches by 11 inches to ensure proper heat dissipation.
Is Intigo dimmable?
No. Intigo lamps are non-dimmable. Control illumination via standard wall switches or electronic photosensors.
Need Help Confirming an Intigo Retrofit?
Send HyLite the existing lamp number, lamp wattage, fixture voltage, EX39 socket photo, ballast model, fixture dimensions, mounting height and a few fixture photos. The lighting team can help determine whether Intigo or another HyLite HID replacement family is the best match.
Find Out More About HyLite LED & Our Products
Interested in Intigo pricing, availability, retrofit compatibility or product specifications? Complete the form and a HyLite team member will follow up.
