E26 Base • Selectable Wattage • Color Temperature • Beam Angle

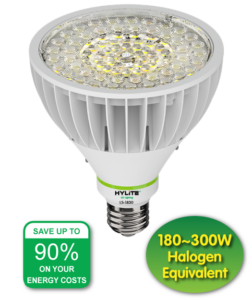

PAR38 LED Retrofit Lamp with Selectable Wattage, CCT & Beam Angle

Q: What beam angles are available?

The LS-1830 includes selectable 25, 40 and 60 degree beam-angle settings.

The HyLite Lotus Lamp LS-1830 is a commercial PAR38 LED retrofit lamp built for projects that need flexibility without stocking numerous fixed-output lamps. One lamp provides selectable 18W, 25W or 30W output, five selectable color temperatures and three selectable beam angles.

With an E26 medium base, CRI >90, 100–277VAC input and Triac dimming at 120VAC, the LS-1830 is designed for compatible track, recessed, display, retail, hospitality and other directional-lighting applications where light level, color and beam spread may need to be adjusted in the field.

Compare PAR38 Settings Request Product Help

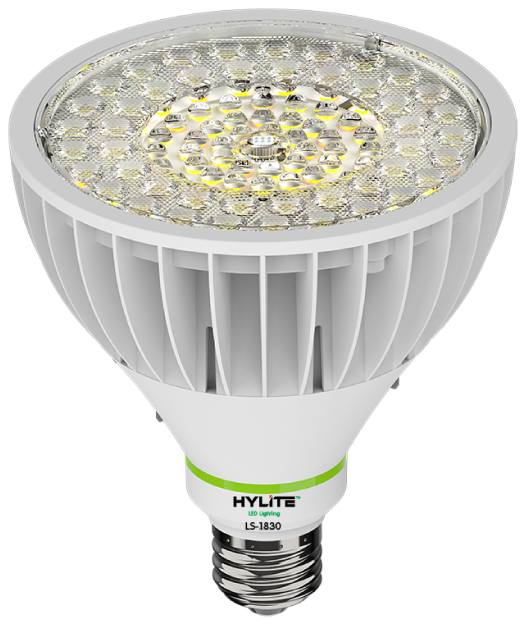

HyLite Lotus Lamp LS-1830 PAR38 specification image

Download Spec Sheet

45 PAR38 Configurations in One Lamp

Three wattage settings × five color temperatures × three beam angles = 45 possible combinations. That can reduce SKU complexity while giving installers more control at the job site.

18W / 25W / 30W

Select output based on required light level, mounting height and application.

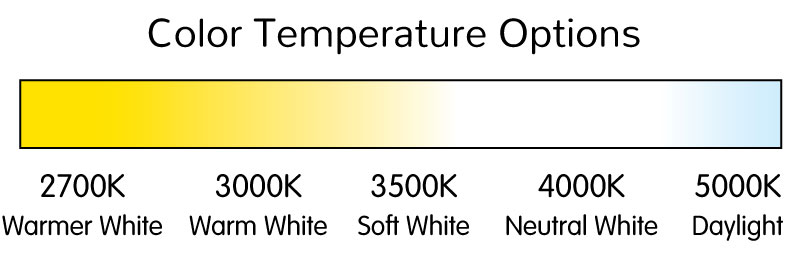

2700K–5000K

Choose warmer, neutral or cooler light for hospitality, retail, office, healthcare, education and display spaces.

25° / 40° / 60°

Shift from tighter accent lighting to balanced directional light or broader coverage.

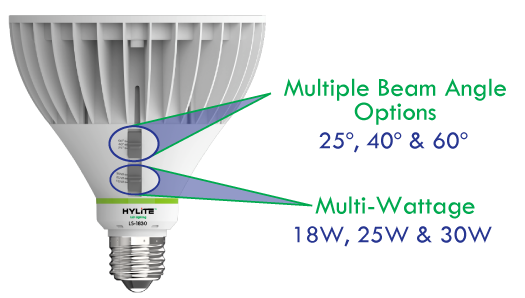

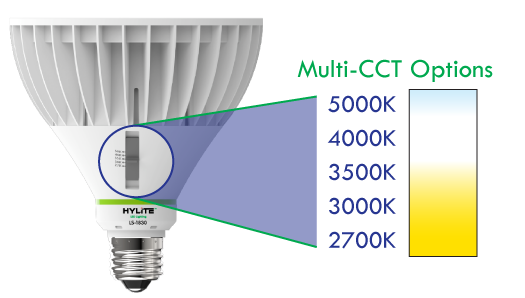

HyLite Lotus LS-1830 PAR38 selectable performance graphic — Current LS-1830 selectable-performance overview.

HyLite Lotus LS-1830 PAR38 product specifications graphic — LS-1830 PAR38 product and retrofit details.

Choose PAR38 Output by Lumens, Not Wattage Alone

The LS-1830 provides three selectable output levels. The best setting depends on mounting height, fixture condition, beam angle, desired light level, glare control and the visual task.

Setting	Maximum Listed Output	Good Starting Point
18W	Up to 1,980 lumens	Smaller zones, lower-output accent areas and glare-sensitive applications
25W	Up to 2,750 lumens	Retail, galleries, offices, showrooms and general commercial directional lighting
30W	Up to 3,300 lumens	Higher-output applications and mounting heights up to 16 feet where appropriate

Lotus PAR38 LS-1830 Features & Benefits

Efficiency Up to 110 LPW

Wattage 18W / 25W / 30W

CCT 2700K–5000K

Beam 25° / 40° / 60°

CRI >90

Base E26 medium base

Input 100–277VAC

Dimming Triac at 120VAC

Rating IP54

Rated Life 60,000 hours

Important Installation Notes

The LS-1830 is listed for fully enclosed fixtures when current space and thermal requirements are met. HyLite’s current PAR38 guidance notes a minimum enclosed lamp compartment of 6" × 6" × 8.5".

Confirm the existing fixture or can provides adequate space and clearance for the PAR38 lamp before installation.
Check the condition and orientation of the existing E26 medium-base socket before selecting the retrofit.
Verify the application voltage before ordering. The LS-1830 is listed for 100–277VAC input.
Triac dimming is listed at 120VAC. Confirm the exact dimmer, input voltage and control configuration before installation.
Review mounting height, desired light level and beam spread when selecting between the 18W, 25W and 30W settings.
Select the appropriate CCT and beam angle for the space before final installation and adjustment.

Fixture dimensions, socket condition, voltage, dimming system and available clearance can vary from project to project. Use the current HyLite specification sheet and project-specific information when confirming compatibility.

How to Choose Wattage, CCT & Beam Angle

1. Set the Light Output

Select 18W, 25W or 30W based on required lumens, mounting height, fixture condition and the visual task.

2. Choose the CCT

Use warmer settings for atmosphere and hospitality, or neutral-to-cooler settings where visibility and task clarity matter more.

3. Select the Beam

Use 25° for tighter accent lighting, 40° for balanced directional coverage or 60° for broader spread.

Commercial PAR38 Applications

The LS-1830 is strongest where directional lighting, beam control, color quality and retrofit flexibility all matter.

Track Lighting Retail, galleries, showrooms & displays.

Recessed Downlights Compatible PAR38 can fixtures in commercial interiors.

Retail & Malls High-CRI product & merchandising illumination.

Galleries & Showrooms Adjustable beam & CCT for artwork & displays.

Hotels & Restaurants Warm guest-area or bright service-area lighting.

Offices & Schools Directional lighting where CCT options are useful.

Healthcare Commercial spaces needing visual clarity & color.

Walkways & Stairwells Directional visibility in indoor/protected areas.

Before Ordering a PAR38 Retrofit

Existing lamp manufacturer and model number
Existing lamp wattage and voltage
Fixture or can dimensions
E26 socket condition and orientation
Mounting height
Desired light level and beam spread

Current dimming or control system
Indoor, damp, protected exterior or enclosed-fixture conditions
Project quantity
Photos of the existing lamp and fixture
Any ballast or control gear present in the existing system

PAR38 Product Features at a Glance

All existing product feature graphics are retained below. Use the current specification sheet for model-specific project decisions.

Existing HyLite product feature graphic 4

PAR38 Lighting Applications

Directional PAR38 lighting is commonly used where focused light, presentation quality and adjustable beam spread matter.

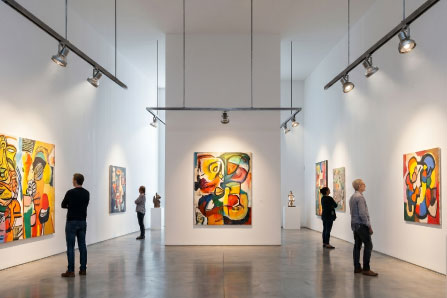

Lotus PAR38 lighting in an art gallery application — Gallery, artwork and display lighting

Commercial PAR38 directional lighting application — Commercial directional lighting

PAR38 accent and commercial lighting application — Accent and commercial interior lighting

Lotus PAR38 FAQs

What wattage options are available on the Lotus PAR38?

The LS-1830 provides selectable 18W, 25W and 30W settings, with current listed output up to 1,980, 2,750 and 3,300 lumens respectively.

What color temperatures can I select?

The current LS-1830 offers 2700K, 3000K, 3500K, 4000K and 5000K selectable CCT settings.

What beam angles are available?

The LS-1830 includes selectable 25°, 40° and 60° beam-angle settings.

Why does HyLite call it 45 configurations in one lamp?

The lamp combines three wattage settings, five color temperatures and three beam angles. Multiplying 3 × 5 × 3 produces 45 possible combinations.

Is the Lotus PAR38 dimmable?

The current LS-1830 lists Triac dimming at 120VAC. Confirm the exact dimmer, voltage and current product documentation before ordering.

Can the LS-1830 be used in an enclosed fixture?

Yes, when the fixture provides the required space and thermal conditions. HyLite’s current guidance notes a minimum lamp-compartment size of 6 inches × 6 inches × 8.5 inches.

What base does the Lotus PAR38 use?

The LS-1830 uses an E26 medium base. Confirm the condition, orientation and electrical configuration of the existing socket and fixture before installation.

How do I know if the Lotus PAR38 is right for my project?

Send HyLite the existing lamp model, fixture type, voltage, socket information, mounting height, dimming system, desired beam and project quantity. Photos are also helpful.

Need Help Matching the Lotus PAR38 to Your Fixture?

Send us the existing lamp number, fixture type, voltage, E26 socket information, mounting height, dimming system, desired beam and project quantity. Our team can help identify whether the LS-1830 should be reviewed for your application.

Request a PAR38 Recommendation Download Spec Sheet

Get Pricing, Product Recommendations, or Spec Help

For the fastest recommendation, include the existing PAR38 lamp or model number, fixture details, voltage, mounting height, control system and project quantity.
