Reduce Energy Use
Review lower-wattage LED options against the existing HID lamp, required lumen output and actual fixture conditions.
Reduce Maintenance
Long-rated-life LED lamps can reduce relamping frequency in hard-to-reach commercial and industrial fixtures.
Simplify the Stocking Process
Selectable wattage and color temperature can allow one approved lamp to cover several project conditions.
Match the Application
Choose directional or omni-directional output based on the fixture, mounting orientation, target area and required beam pattern.
HyLite HID Replacement Product Families
Select the retrofit lamp family designed for your fixture geometry and required light distribution.

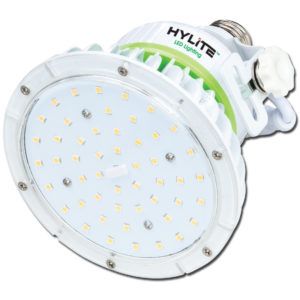

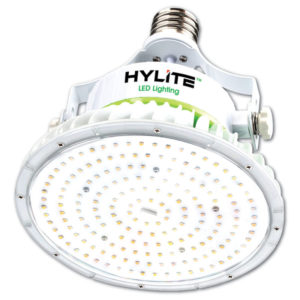

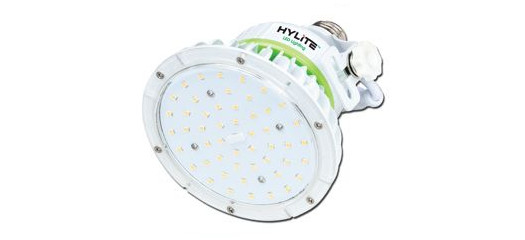

Lotus Lamp PAR56 / PAR64 HID Retrofit
The HyLite Lotus Lamp family provides a high-output LED retrofit option for existing HID, PAR halogen, CFL and other commercial lamp applications. Features a 40W/60W dual-wattage model rated up to 10,195 lumens and a 100W/150W model rated up to 24,503 lumens.
- CCT selectable: 3000K / 4000K / 5000K
- High CRI: >90
- Efficiency: Up to 166 LPW
- Dimming: Triac and 0-10VDC
- Rated life: 60,000 hours
- Voltage: 100-277VAC
- Connections: EX39, GX16D and WC2 options
Common applications: High ceilings, stage lighting, parking garages, site lighting, low bays, high bays, houses of worship and high-output commercial fixtures.
Lotus Lamp PAR38 LED Retrofit
The HyLite Lotus Lamp LS-1830 PAR38 is built for directional commercial lighting where beam spread matters as much as lumen output. Selectable wattage, five color temperatures and three beam-angle settings are combined in one PAR38 lamp.
- Selectable wattage: 18W / 25W / 30W
- Output: Up to 3,300 lumens
- CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
- Selectable beam: 25° / 40° / 60°
- High CRI: >90
- Base: E26 medium base
- Voltage: 100-277VAC
- Dimming: TRIAC dimmable at 120VAC
- Rated life: 60,000 hours
Common applications: Track lighting, recessed downlights, retail displays, galleries, showrooms, hospitality spaces, walkways and stairwells.
Omni-Cob HID Replacement Lamps
HyLite Omni-Cob lamps deliver 360° omni-directional illumination in fixtures where light needs to spread around the lamp rather than project through a narrow directional beam. Multiple selectable-wattage families allow facilities to match the output closely to the application.
- Selectable wattage families: 9W/12W/18W, 22W/25W/27W, 36W/45W/60W, 70W/80W/100W
- Maximum output: Up to 16,500 lumens
- CCT selectable: 3000K / 4000K / 5000K
- Efficiency: Up to 165 LPW
- Light distribution: 360°
- Rated life: 60,000 hours
- Voltage: 100-277V or 120-347V depending on model
Common applications: Post-tops, street lights, security lighting, warehouses, high bays, low bays, bollards, wall packs, parking structures and area lighting.

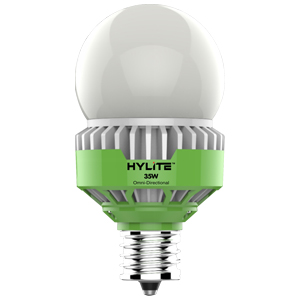

Intigo Omni-Directional HID Replacement Lamp
The HyLite Intigo Omni-Directional Lamp is a compact EX39-based LED retrofit designed for existing commercial fixtures that need broad 360° illumination with 20 selectable wattage/CCT configurations.
- Selectable wattage: 20W / 25W / 30W / 35W
- CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
- Efficiency: Up to 165 LPW
- Light distribution: 360°
- CRI: >80
- Base: EX39 mogul base
- Voltage: 100-277VAC
- Rated life: 60,000 hours
- Fixture use: Suitable for fully enclosed fixtures
Common applications: Bollards, walkways, offices, schools, hotels, healthcare facilities, decorative lighting, driveways and stairwells.
Which HyLite HID Replacement Product Should You Review?
Start with the fixture and required light distribution. Then confirm wattage, voltage, base, dimensions and installation method against the current product specification sheet.
| Existing Application / Need | Product to Review | Why It May Fit |
|---|---|---|
| High-output commercial lighting, large fixtures, high ceilings, stage, site or area lighting | Lotus Lamp PAR56/PAR64 | 40W/60W and 100W/150W dual-wattage models with selectable CCT and product-specific beam and connection options. |
| Directional PAR38, track, recessed, accent or display lighting | Lotus Lamp PAR38 | Selectable 18W/25W/30W, five CCT settings and 25°/40°/60° beam choices. |
| Omni-directional HID, HPS or metal-halide applications such as post-tops, bollards, high bays, garages and area lighting | Omni-Cob | Multiple selectable-wattage families, 360° illumination and selectable 3000K/4000K/5000K options. |
| Compact EX39 omni-directional replacement for bollards, walkways, stairwells and general commercial lighting | Intigo Omni-Directional | 20W/25W/30W/35W selectable wattage, five CCT options and 360° light distribution. |
Upgrade HID Lighting Without Automatically Replacing the Entire Fixture
HID-to-LED retrofit projects often begin with an existing metal halide, high-pressure sodium or other high-intensity discharge lamp housed in a fixture that is still suitable for use. The right LED retrofit can reduce input wattage, shorten warm-up time, reduce relamping and give facilities greater control over light output and color without automatically requiring a complete fixture replacement.
Important: Confirm the Existing Ballast and Wiring Before Installation
Many HID-to-LED retrofit applications use a direct-line-voltage installation that removes or bypasses the existing HID ballast. The exact wiring method depends on the selected lamp, fixture and current instruction sheet. Confirm the existing lamp, ballast, supply voltage, base and fixture configuration before ordering. Electrical work should be completed by qualified personnel following the current product instructions and applicable requirements.
What to Check Before Ordering an HID-to-LED Retrofit Lamp
A retrofit recommendation is more reliable when the existing fixture details are known before the lamp is selected.
Metal halide, HPS, mercury vapor, PAR, CFL or other source.
Compare required output and distribution rather than using a simple watt-for-watt replacement.
Needed to determine the approved wiring path.
Confirm actual fixture voltage before choosing the lamp.
Confirm E26, EX39 or another connection before ordering.
Check physical clearance, airflow and enclosed-fixture requirements.
Base-up, base-down or horizontal orientation can affect model selection.
Document photocells, sensors, dimmers, emergency systems or other controls.
Include the number of matching fixtures and note any variations.
HID Retrofit Resources
Use the current product and specification pages to confirm the exact model, electrical requirements, dimensions and installation method.
HID Replacement FAQ
Can I replace a metal halide or high-pressure sodium lamp with LED?
Often, yes, but the correct LED replacement depends on the existing lamp, fixture, ballast, voltage, base, light distribution and physical space. Confirm those details against the current HyLite specification and instruction sheet before ordering.
Does the HID ballast need to be bypassed?
For direct-line-voltage retrofit products, the existing HID ballast is removed or bypassed so the LED receives the approved supply voltage. Always follow the wiring instructions for the exact HyLite model.
How do I choose the correct LED wattage to replace HID?
Do not use a simple watt-for-watt formula. Compare lumen output, beam pattern, mounting height, orientation and required light level. Selectable-wattage products can make field adjustment easier.
Which HyLite lamp is best for an omni-directional HID fixture?
The Omni-Cob and Intigo Omni-Directional families are designed for broad 360° illumination. The correct choice depends on required output, fixture size, base, voltage, enclosure and mounting orientation.
Which HyLite lamp is best when I need a directional beam?
The Lotus Lamp family is designed for directional applications. PAR38 provides selectable 25°, 40° and 60° beam options, while the larger Lotus PAR56/PAR64 family offers product-specific beam choices for higher-output applications.
Can HyLite HID replacement lamps be used in enclosed fixtures?
Several current HyLite retrofit products are listed as suitable for fully enclosed fixtures, but model-specific space, orientation and thermal requirements still apply. Confirm the current specification sheet before installation.
Not Sure Which HID Replacement Lamp Fits Your Fixture?
Send HyLite the existing lamp number, lamp wattage, ballast model, supply voltage, base type, fixture photos, mounting orientation and project quantity. The lighting team can help identify which current Lotus, PAR38, Omni-Cob or Intigo configuration should be reviewed for the application.
Get Pricing, Product Recommendations or Spec Help
Tell us what you are replacing and include as much information about the existing fixture as possible.
