PAR38 LED Retrofit Lamp With 45 Configurations
Why the HyLite Lotus Lamp LS-1830 Is Built for Flexible Commercial Lighting Upgrades
PAR38 lighting is used in some of the most visually important areas of a building: track lighting, recessed downlights, retail displays, galleries, showrooms, hospitality spaces, corridors, stairwells, and other directional lighting applications. The challenge is that every project can require a different wattage, color temperature, and beam spread.
The HyLite LED Lotus Lamp PAR38 LS-1830 solves that problem with 45 different configurations in one high-performance PAR38 LED retrofit lamp. With selectable wattage, selectable CCT, and selectable beam angles, it gives contractors, facility managers, and lighting professionals more control with fewer SKUs.
18W, 25W, or 30W selectable wattage. 2700K to 5000K selectable CCT. 25°, 40°, or 60° beam angle adjustment.
Select 18W, 25W, or 30W for a single lamp to match the required brightness level across different spaces and applications.
Choose from 2700K, 3000K, 3500K, 4000K, or 5000K to support warm, neutral, or crisp daylight-style illumination.
Use 25° for focused accent lighting, 40° for balanced directional lighting, or 60° for broader coverage.
Improve color clarity for retail merchandise, artwork, hospitality interiors, showrooms, finishes, and architectural details.
Fixed-output PAR38 lamps force you to choose brightness, color temperature, and beam spread before the final environment is fully understood. That can create mismatched light levels, inconsistent color, and too many individual lamp variations to manage.
What Makes the LS-1830 Different?
The HyLite Lotus Lamp PAR38 is designed for reliability, improved visibility, and low power consumption. It supports 5-color temperature adjustment, 3-position wattage regulation, and 3-position beam angle adjustment, offering 45 total configuration possibilities in a single lamp.
That flexibility can help contractors reduce the number of PAR38 lamp variations needed on a job. It can also help facility teams standardize on a single adaptable lamp while still customizing individual spaces for brightness, color appearance, and beam coverage.
In practical terms, one LS-1830 can support multiple commercial lighting needs, from warmer hospitality accent lighting to crisp display lighting in retail stores and showrooms.

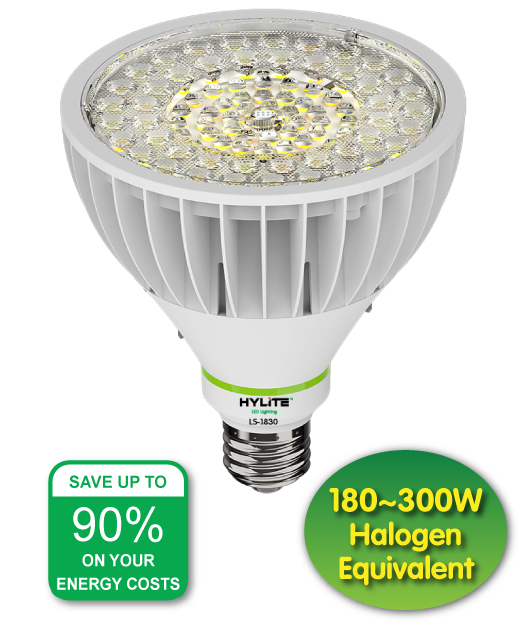

Technical Highlights of the HyLite Lotus Lamp PAR38 LS-1830
The LS-1830 is engineered for commercial retrofit use where long-term performance, installation flexibility, and visual quality matter. Below are the key specifications lighting professionals should evaluate when choosing a PAR38 LED replacement lamp.
Selectable wattage with up to 1,980, 2,750, or 3,300 delivered lumens.
Five selectable color temperatures for warm, neutral, or daylight-style lighting.
Selectable beam angles for accent lighting, balanced coverage, or broader illumination.
Clean, crisp color rendering for spaces where visual quality and presentation matter.
Universal voltage for a wide range of commercial electrical environments.
Long-rated life helps reduce relamping cycles, maintenance costs, and disruptions.
Designed for easy retrofit into compatible PAR38 fixture applications.
Shatterproof, high-shock, and high-vibration-resistant design for demanding use cases.
What “45 Configurations in One” Actually Means
The LS-1830 combines three adjustable performance categories. When you multiply 3 wattage settings by 5 color temperature settings by 3 beam angle settings, you get 45 possible combinations from one PAR38 LED lamp.
18W, 25W, and 30W allow a single lamp to meet different brightness requirements.
2700K, 3000K, 3500K, 4000K, and 5000K help match the light to the environment.
25°, 40°, and 60° give the installer more control over focus, spread, and visual emphasis.
For distributors, contractors, and facility managers, that means fewer lamp variations to manage and more flexibility at the point of installation.
Choosing the Right Wattage, CCT, and Beam Angle
PAR38 LED retrofit projects should not be selected solely by wattage. A better approach is to evaluate lumens, CCT, beam angle, mounting height, fixture condition, socket orientation, visual task, and the overall lighting goal for the space.
| Setting | LS-1830 Option | Best Use Case | Why It Matters |
|---|---|---|---|
| 18W | Up to 1,980 lumens | Smaller zones, lower-output accent areas, and spaces where glare control matters. | Reduces power draw while maintaining strong LED output. |
| 25W | Up to 2,750 lumens | Retail, galleries, offices, showrooms, and general commercial directional lighting. | Provides a balanced middle setting for many retrofit projects. |
| 30W | Up to 3,300 lumens | Higher-output replacement, brighter displays, and applications with mounting heights up to 16 feet where appropriate. | Delivers maximum LS-1830 output while still reducing energy use versus many legacy lamps. |
| Beam / CCT Choice | Recommended Thinking | Common Applications |
|---|---|---|
| 25° Beam | Use when you need a tighter, more focused beam. | Artwork, product displays, feature walls, architectural accents. |
| 40° Beam | Use for balanced directional light. | Track lighting, recessed lighting, commercial interiors, displays. |
| 60° Beam | Use when broader coverage is more important than a tight spotlight effect. | Wider displays, corridors, guest areas, general accent lighting. |
| 2700K–3000K | Use warmer light where comfort, atmosphere, or hospitality matters. | Restaurants, lounges, hotels, galleries, warm retail environments. |
| 3500K–5000K | Use neutral to crisp light where visibility, clarity, and task performance matter. | Offices, healthcare, schools, showrooms, stairwells, walkways. |
The LS-1830 is strongest where directional lighting, beam control, color quality, and retrofit simplicity all matter.
Ideal for retail stores, galleries, showrooms, hospitality spaces, and directional displays.
Useful for compatible PAR38 can fixtures in offices, hotels, schools, and commercial interiors.
High CRI and selectable CCT support better merchandising, product presentation, and visual consistency.
Adjust beam angles and color temperature to match artwork, finishes, products, and display goals.
Use warmer CCTs in guest areas and cooler CCTs in service areas, corridors, and task spaces.
Improve visibility while reducing long-term relamping and maintenance needs.
Built for Visual Spaces Where Light Quality Matters
In retail, hospitality, gallery, and showroom environments, lighting does more than illuminate the space. It influences how customers see products, colors, surfaces, artwork, architectural details, and the overall environment.
Gallery and accent lighting benefit from CRI >90 and adjustable beam control.
Commercial spaces can use one adaptable lamp across multiple visual zones.
Selectable CCT supports warm hospitality lighting or crisp commercial visibility.
PAR38 Retrofit Planning Checklist
Before replacing PAR38 lamps, confirm the existing fixture, socket, voltage, control strategy, lamp compartment size, and application requirements. A little planning upfront helps prevent installation issues and mismatched lighting results.
Document the existing lamp type, wattage, socket, fixture style, ceiling height, and target brightness.
The LS-1830 uses an E26 medium base. Confirm socket compatibility before ordering.
If the fixture has a ballast, the ballast must be bypassed or removed before installation.
For enclosed fixtures, confirm the minimum lamp compartment size and allow proper heat dissipation.
Do not assume dimmer, sensor, or control compatibility. Send project details to HyLite for guidance.
Select wattage, CCT, and beam angle based on the fixture location, task, visual goal, and customer preference.
Lower Energy Use, Fewer Relamping Headaches
The biggest savings from LED retrofits usually come from two places: reduced wattage and reduced maintenance. The HyLite Lotus Lamp PAR38 uses up to 90% less energy than standard incandescent or halogen lamps, and its long rated life helps reduce relamping cycles over time.
That matters in commercial settings where lamp replacement can involve labor scheduling, lift equipment, service interruptions, and repeated maintenance visits. With up to 60,000 hours of rated life, the LS-1830 is designed to support longer-term facility performance.
The lamp also contains no lead, mercury, heavy metals, or toxic gases and is designed to be 98% recyclable, making it a more environmentally responsible retrofit option for facility upgrades.
The Lotus Lamp PAR38 is one part of HyLite’s broader commercial LED retrofit lineup. If your project includes other legacy lamp types, HyLite can help match the correct product to each fixture.
Need Help Choosing the Right PAR38 LED Retrofit?
Tell HyLite what you’re replacing, your fixture type, ceiling height, quantity, color preference, and beam requirements. Our team can help determine whether the Lotus Lamp PAR38 LS-1830 is the right fit for your project.
Frequently Asked Questions About PAR38 LED Retrofits
What Is a PAR38 LED Retrofit Lamp?
A PAR38 LED retrofit lamp is designed to replace an existing PAR38-style lamp while improving energy efficiency, light quality, and rated life. PAR38 lamps are commonly used in track lighting, recessed downlights, retail displays, galleries, showrooms, accent lighting, stairwells, and other directional lighting applications.
What Makes the HyLite Lotus Lamp PAR38 Different?
The HyLite Lotus Lamp LS-1830 combines three selectable wattages, five selectable color temperatures, and three selectable beam angles in one lamp. That creates 45 possible configurations, helping contractors and facility teams reduce inventory complexity and adjust the lamp to the space.
What Wattage Options Are Available?
The LS-1830 offers selectable wattage options of 18W, 25W, and 30W. Depending on the selected setting, the lamp can deliver up to 1,980, 2,750, or 3,300 lumens.
Which Color Temperatures Can I Select?
The Lotus Lamp PAR38 offers CCT options of 2700K, 3000K, 3500K, 4000K, and 5000 K. This allows the same lamp to support warmer hospitality lighting, neutral commercial lighting, or crisp daylight-style task lighting.
What Beam Angles Are Available?
The LS-1830 includes 25°, 40°, and 60° selectable beam angles. The 25° setting is useful for tighter accent lighting, 40° works well for balanced directional lighting, and 60° provides broader coverage.
Is the LS-1830 Suitable for Enclosed Fixtures?
Yes, the LS-1830 is suitable for fully enclosed fixtures when installed in a fixture that provides enough space and heat dissipation. The spec sheet notes a minimum enclosed fixture lamp compartment size of 6″ x 6″ x 8.5″. Always confirm fixture conditions before installation.
Does the Ballast Need to Be Bypassed?
Yes. If the existing fixture has a ballast, the ballast must be bypassed or removed before installing the HyLite Lotus Lamp PAR38. The lamp is designed to run on AC direct line voltage.
Can the Lotus Lamp PAR38 Be Used With Dimmers or Sensors?
Control compatibility should be confirmed before ordering or installation. If the project includes dimmers, remote controls, occupancy sensors, photosensors, or other control systems, contact HyLite LED with the fixture details so the correct recommendation can be verified.
Where Is the Lotus Lamp PAR38 Most Useful?
The LS-1830 is a strong fit for track lighting, recessed downlights, retail stores, shopping malls, galleries, showrooms, hotels, restaurants, offices, schools, hospitals, walkways, and stairwells.
How Do I Know If This PAR38 LED Retrofit Is Right for My Project?
Send HyLite LED your existing lamp type, fixture type, socket/base, voltage, ceiling height, quantity, preferred CCT, beam preference, and control requirements. HyLite can help determine whether the LS-1830 is the right retrofit solution.
